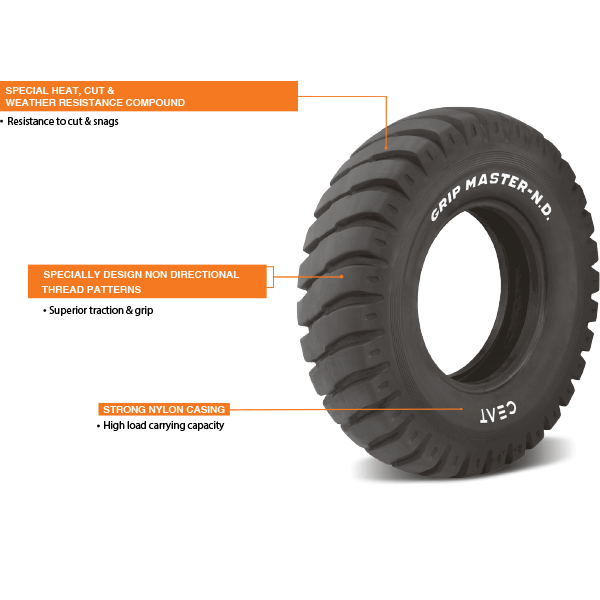

GRIP MASTER ND
Built for heavy loads and extreme working conditions, the GRIP MASTER ND is strengthened by heat, cut and weather resistance, the GRIP MASTER ND withstands cuts, snags and bruises. It also reduces heat build-up, offers higher stability and a longer service life.
Features & Benefits:
A specially designed non-directional tread pattern ensures the GRIP MASTER ND can shoulder heavy loads and extreme working conditions. A premium tire for heavy duty, severe loading and earthmover operations, it is fortified for heat, cut and weather resistance.
A heavy duty nylon casing ensures it can withstand cuts, snags and bruises, while a superior tread and sidewall compound reduce heat build-up. Higher stability and a longer service life ensure that this mining and logging tire can also be used in intermittent highway services.
Reach Stacker
|
Rim Size
in |
Size
|
Type
|
PR
|
Rim
|
Unloaded Dimensions
|
SLR
|
RC
|
Infl. Press
|
Load capacity | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed kmph/ mph | ||||||||||||||
| SW | OD |
Static
|
25 | 10 | 5 | 1 | ||||||||
| mm | mm | mm | mm | bar | 15 | 5 | 3 | 0.6 | ||||||
| in | in | in | in | psi | Recommended load kg/ lbs | |||||||||
|
25
|
18.00-25
|
TL
|
40
|
13
|
498
20 |
1615
64 |
738
29 |
4780
188 |
10 | 30600 | 21250 | 22950 | 24650 | 27200 |
| 145 | 67460 | 46845 | 50595 | 54345 | 59965 | |||||||||
