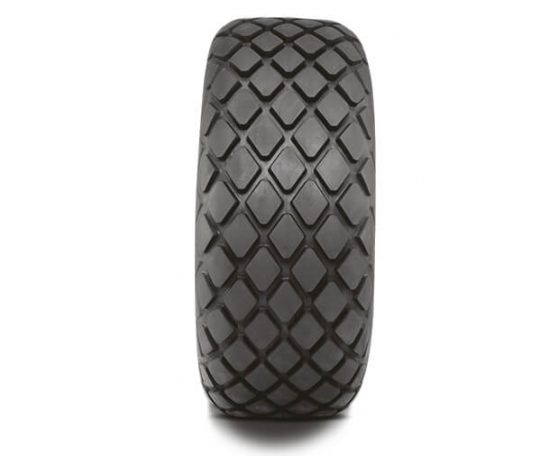

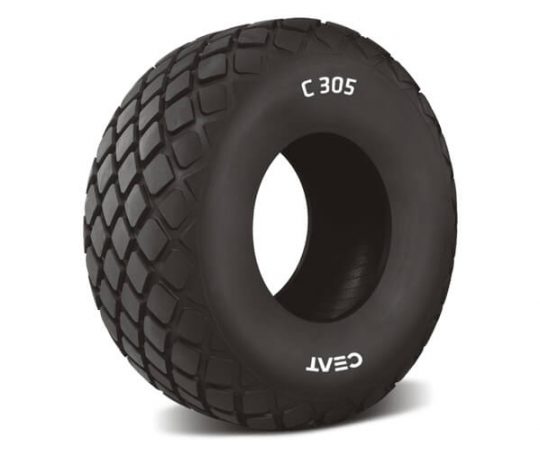

C 305
The C 305 provides higher flotation on soft soil with minimum ground disturbance. A flat and wide footprint makes it suitable for use for industrial and road construction applications. The C 305 also delivers a longer service life in several operating conditions.
Features & Benefits:

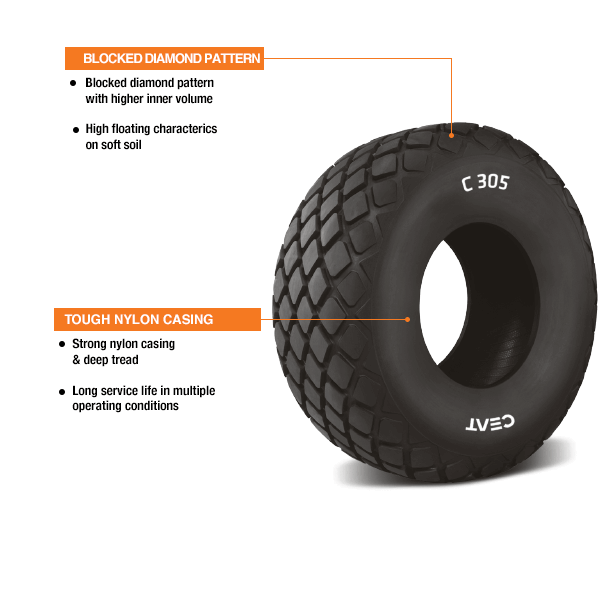

Made rugged, for the multipurpose drive wheel tyre, the C 305 provides higher flotation on soft soil with minimum ground disturbance. A strong nylon casing and increased tread depth ensures a flat and wide footprint that makes it suitable for industrial and road construction applications, while a high modulus compound ensures longer service life in several operating conditions.
The C 305 is recommended for use on road rollers and road compactors.
Compactor
|
Rim Size
in |
Size
|
Type
|
LI/SS
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Infl. Press
|
Static
|
Load capacity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Speed kmph/mph
|
Field Operation | ||||||||||||||||||
|
SW
|
OD
|
Low Torque | High Torque | ||||||||||||||||
| Speed kmph/mph | |||||||||||||||||||
| 10 | 20 | 30 | 40 | 50 | 10 | 20 | 10 | ||||||||||||
| mm | mm | mm | mm | bar | 6 | 12 | 19 | 25 | 31 | 6 | 12 | 6 | |||||||
| in | in | in | in | psi | Recommended Load (Kg/lbs) | ||||||||||||||
|
26
|
23.1-26
|
TL
|
159A8
|
16
|
DW20
|
587
23 |
1560
61 |
690
27 |
4545
179 |
1.9 | 8990 | 5870 | 4810 | 4180 | 3910 | 3560 | 5470 | 4690 | 4180 |
| 28 | 19800 | 12930 | 10590 | 9210 | 8610 | 7840 | 12050 | 10330 | 9210 | ||||||||||
| 2.1 | 9550 | 6230 | 5100 | 4440 | 4150 | 3780 | 5810 | 4980 | 4440 | ||||||||||
| 30 | 21040 | 13720 | 11230 | 9780 | 9140 | 8330 | 12800 | 10970 | 9780 | ||||||||||
| 2.3 | 10060 | 6560 | 5380 | 4680 | 4375 | 3980 | 6130 | 5250 | 4680 | ||||||||||
| 33 | 22160 | 14450 | 11850 | 10310 | 9640 | 8770 | 13500 | 11560 | 10310 | ||||||||||
|
Rim Size
in |
Size
|
Type
|
LI/SS
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Infl. Press
|
Static
|
Load capacity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Speed kmph/mph
|
Field Operation | ||||||||||||||||||
|
SW
|
OD
|
Low Torque | High Torque | ||||||||||||||||
| Speed kmph/mph | |||||||||||||||||||
| 10 | 20 | 30 | 40 | 50 | 10 | 20 | 10 | ||||||||||||
| mm | mm | mm | mm | bar | 6 | 12 | 19 | 25 | 31 | 6 | 12 | 6 | |||||||
| in | in | in | in | psi | Recommended Load (Kg/lbs) | ||||||||||||||
|
26
|
23.1-26
|
TL
|
153A8
|
12
|
DW20
|
587
23 |
1560
61 |
690
27 |
4545
179 |
1.5 | 7800 | 5090 | 4170 | 3630 | 3390 | 3080 | 4750 | 4070 | 3630 |
| 22 | 17180 | 11210 | 9190 | 8000 | 7470 | 6780 | 10460 | 8960 | 8000 | ||||||||||
| 1.7 | 8400 | 5480 | 4490 | 3910 | 3650 | 3320 | 5110 | 4380 | 3910 | ||||||||||
| 25 | 18500 | 12070 | 9890 | 8610 | 8040 | 7310 | 11260 | 9650 | 8610 | ||||||||||
|
Rim Size
in |
Size
|
Type
|
LI/SS
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Infl. Press
|
Static
|
Load capacity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Speed kmph/mph
|
Field Operation | ||||||||||||||||||
|
SW
|
OD
|
Low Torque | High Torque | ||||||||||||||||
| Speed kmph/mph | |||||||||||||||||||
| 10 | 20 | 30 | 40 | 50 | 10 | 20 | 10 | ||||||||||||
| mm | mm | mm | mm | bar | 6 | 12 | 19 | 25 | 31 | 6 | 12 | 6 | |||||||
| in | in | in | in | psi | Recommended Load (Kg/lbs) | ||||||||||||||
|
26
|
23.1-26
|
TL
|
149 A8
|
10
|
DW20
|
587
23 |
1560
61 |
690
27 |
4545
179 |
1.2 | 6830 | 4460 | 3650 | 3180 | 2970 | 2700 | 4160 | 3560 | 3180 |
| 17 | 15040 | 9820 | 8040 | 7000 | 6540 | 5950 | 9160 | 7840 | 7000 | ||||||||||
| 1.3 | 7150 | 4670 | 3830 | 3330 | 3110 | 2830 | 4350 | 3730 | 3330 | ||||||||||
| 19 | 15750 | 10290 | 8440 | 7330 | 6850 | 6230 | 9580 | 8220 | 7330 | ||||||||||
| 1.4 | 7480 | 4880 | 4000 | 3480 | 3250 | 2960 | 4550 | 3900 | 3480 | ||||||||||
| 20 | 16480 | 10750 | 8810 | 7670 | 7160 | 6520 | 10020 | 8590 | 7670 | ||||||||||
