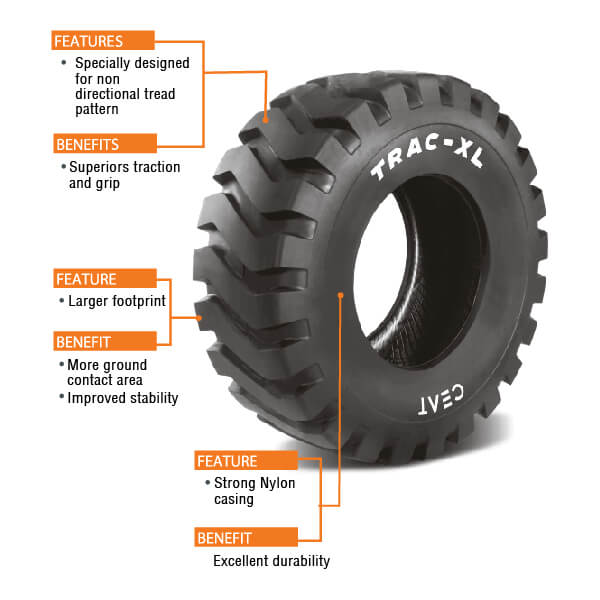

TRAC-XL E3/L3
The TRAC XL is built to deliver uniform wear, puncture resistance, reduced lug flexing and a longer service life.
Features & Benefits:
The TRAC XL’s features include higher NSD and continuous lug bars.
Optimised lug geometry delivers uniform wear while continuous tie bars reduce lug flexing and extend service life.
A higher under tread fortifies the tyre with puncture resistance.
The TRAC XL is recommended for use on concrete mixers.
Cement Mixer
|
Rim Size
in |
Size
|
Type
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Load capacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Transport
50 kmph (30mph) |
Loading
10 kmph (5mph) |
|||||||||||
|
SW
|
OD
|
|||||||||||
|
Infl. Press
|
Max Load
|
Infl. Press
|
Max Load
|
|||||||||
| mm | mm | mm | mm | bar | kg | bar | kg | |||||
| in | in | in | in | psi | lbs | psi | lbs | |||||
|
20
|
405/70-20
|
TL
|
16
|
13.00
|
400
15.7 |
1088
42.8 |
480
18.9 |
3290
129.5 |
5.15 | 5735 | 4 | 3515 |
| 74 | 12615 | 58 | 7730 | |||||||||
