PORT PRO TX
Designed to deliver the increased traction required for RTG and empty container handlers, the PORT PRO TX also has a high ground contact area for good traction on paved surfaces. This tyre delivers a longer service life with improved penetration resistance.
Features & Benefits:

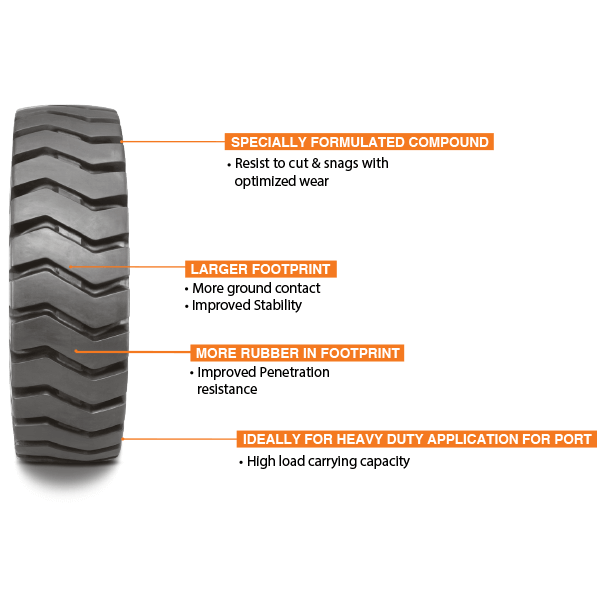

The PORT PRO TX has sturdy lugs with self-cleaning properties, designed for RTG and empty container handlers that demand high traction.
A flat tread with large width improves the ground contact area for improved traction on paved surfaces. More rubber in the footprint improves the tyre’s penetration resistance while a continuous tread pattern improves the tyre’s service life.
The CEAT PORT PRO TX is recommended for use on RTG cranes.
RTG Crane
|
Rim Size
in |
Size
|
Type
|
PR
|
Rim
|
Unloaded Dimensions
|
SLR
|
RC
|
Infl. Press
|
Load capacity | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed kmph/ mph | ||||||||||||||
| SW | OD |
Static
|
25 | 10 | 5 | 1 | ||||||||
| mm | mm | mm | mm | bar | 15 | 5 | 3 | 0.6 | ||||||
| in | in | in | in | psi | Recommended load kg/ lbs | |||||||||
|
35
|
21.00-35
|
TL
|
40
|
15
|
580
22.8 |
2025
79.7 |
930
36.6 |
5987
235.7 |
10 | 43700 | 30400 | 32800 | 35200 | 38900 |
| 145 | 96140 | 66880 | 72160 | 77440 | 85580 | |||||||||
