Farm Implement 800R

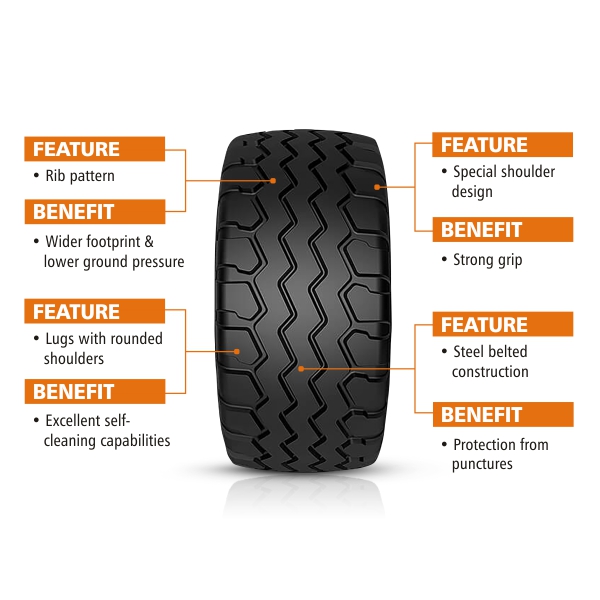

Farm implement 800R steel belted radial implement tires are specially designed for optimized soil and plant protection, and suitable for haulage, hay harvesting and soil tillage applications. High denier textile casing combined with superior quality tread and sidewall rubber compound promises a good tire life. Strong nylon/polyester casing and strong tread compound provides higher wear resistance. It has high load carrying capacity, working speed and superior distribution of pressure on the surface. The low rolling resistance during on‐road travel ensures significant savings in fuel consumption.
Implement
|
Rim Size in
|
Size
|
LI/SS
|
Type
|
Rim
|
Inflated Dimension
|
SLR
|
RC
|
Infl Pressure
|
Recommended load, kg (lbs) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed, km/h (mph) | ||||||||||||||||||||||
|
Free Rolling
|
Drive Wheel
|
SW | OD | Free Rolling | Drive Wheel | |||||||||||||||||
| mm | mm | mm | mm | Bar | 10 | 20 | 25 | 30 | 40 | 50 | 10 | 20 | 25 | 30 | 40 | 50 | ||||||
| in | in | in | in | Psi | 6 | 12 | 16 | 19 | 25 | 31 | 6 | 12 | 16 | 19 | 25 | 31 | ||||||
|
18
|
440/55R18
|
159 A8
|
147 A8
|
TL
|
14.00
|
420
16.5 |
941
37.0 |
410
16.1 |
3050
120.1 |
1.6 | 2940 | 2650 | 2500 | 2350 | 2100 | 2100 | 2070 | 1860 | 1760 | 1660 | 1480 | 1480 |
| 23 | 6480 | 5840 | 5510 | 5180 | 4630 | 4630 | 4560 | 4100 | 3880 | 3660 | 3260 | 3260 | ||||||||||
| 2.4 | 3920 | 3530 | 3330 | 3140 | 2800 | 2800 | 2800 | 2520 | 2380 | 2240 | 2000 | 2000 | ||||||||||
| 35 | 8630 | 7780 | 7330 | 6920 | 6170 | 6170 | 6170 | 5550 | 5240 | 4930 | 4410 | 4410 | ||||||||||
| 3.2 | 4700 | 4230 | 4000 | 3760 | 3360 | 3360 | 3300 | 2970 | 2810 | 2640 | 2360 | 2360 | ||||||||||
| 46 | 10350 | 9320 | 8810 | 8280 | 7400 | 7400 | 7270 | 6540 | 6190 | 5810 | 5200 | 5200 | ||||||||||
| 4 | 5770 | 5190 | 4900 | 4610 | 4120 | 4120 | 4060 | 3650 | 3450 | 3250 | 2900 | 2900 | ||||||||||
| 58 | 12710 | 11430 | 10790 | 10150 | 9070 | 9070 | 8940 | 8040 | 7600 | 7160 | 6390 | 6390 | ||||||||||
| 5 | 6130 | 5510 | 5210 | 4900 | 4375 | 4375 | 4310 | 3870 | 3660 | 3440 | 3075 | 3075 | ||||||||||
| 73 | 13500 | 12140 | 11480 | 10790 | 9640 | 9640 | 9490 | 8520 | 8060 | 7580 | 6770 | 6770 | ||||||||||
