FARM IMPLEMENT I1

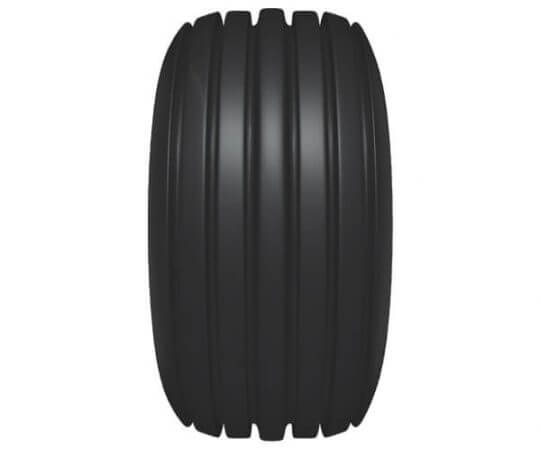

The FARM IMPLEMENT I1 bias agricultural implement tire has a high-load carrying capacity and is designed for on-road and off-road use.

Features & Benefits:

FARM IMPLEMENT I1

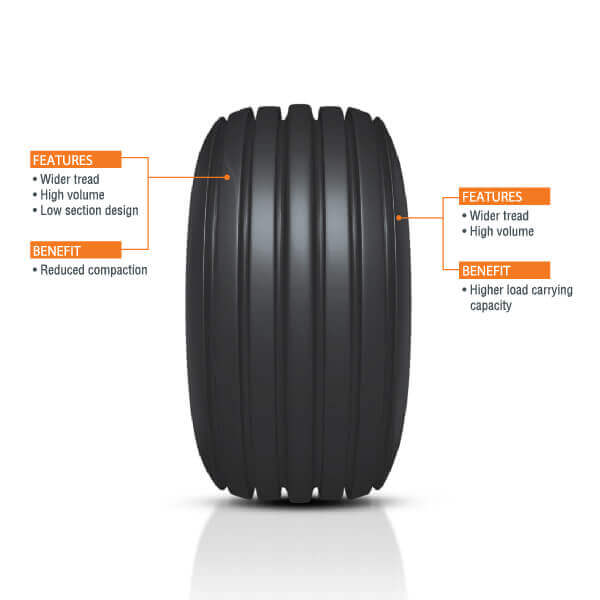

A multi-rib low-section design bolsters the FARM IMPLEMENT I1 tire’s ability to carry heavy loads. Extra-wide tread and high volume ensure the tire is suitable for on-road and off-road use.

Implement

Scroll down for more details

Datasheet

Understand Table Abbreviations

Reset Filter

Rim Size in	Size	PR	Type	Rim	Unloaded dimension		SLR	RC	Load Index	Infl. Press.	Load Carrying Capacity
					SW	OD	SLR	RC	Load Index	Infl. Press.	Static	Speed, km/h (mph)
					mm	mm	mm	mm	Speed	bar	kg	15	40	65
					in	in	in	in	Symbol	psi	lbs	10	20	40
15	13.50-15 IMP	-	TL	10 LB	350	820	372	2430	LOAD RANGE F	5.2	6440	3560	2800	2060
15	13.50-15 IMP	-	TL	10 LB	13.8	32.3	14.6	95.7	LOAD RANGE F	75	14190	7850	6170	4540

Download

Rim Size in	Size	PR	Type	Rim	Unloaded dimension		SLR	RC	Load Index	Infl. Press.	Load Carrying Capacity
					SW	OD	SLR	RC	Load Index	Infl. Press.	Static	Speed, km/h (mph)
					mm	mm	mm	mm	Speed	bar	kg	15	40	65
					in	in	in	in	Symbol	psi	lbs	10	20	40
15	13.50-15 IMP	-	TL	10 LB	350	820	372	2430	Load Range D	3.1	4692	2595	2040	1500
15	13.50-15 IMP	-	TL	10 LB	13.8	32.3	14.6	95.7	Load Range D	45	10340	5720	4500	3310

Download

Rim Size in	Size	PR	Type	RIm	Unloaded dimension		SLR	RC	Load capacity
					SW	OD	SLR	RC	Infl. Press.	STATIC	Max Speed	Max Load
					mm	mm	mm	mm	bar	kg	kmph	kg
					in	in	in	in	psi	lbs	mph	lbs
15	12.5L-15 SL	12	TL	10 LB	318 13	823 32	363 14	2411 95	3.6	3500	50	1750
15	12.5L-15 SL	12	TL	10 LB	318 13	823 32	363 14	2411 95	52	7715	31	3860

Download

Rim Size in	Size	PR	Type	RIm	Unloaded dimension		SLR	RC	Load capacity
					SW	OD	SLR	RC	Infl. Press.	STATIC	Max Speed	Max Load
					mm	mm	mm	mm	bar	kg	kmph	kg
					in	in	in	in	psi	lbs	mph	lbs
15	12.5L-15 SL	10	TT/TL	10 LB	318 13	823 32	363 14	2411 95	3	3100	50	1550
15	12.5L-15 SL	10	TT/TL	10 LB	318 13	823 32	363 14	2411 95	44	6835	31	3420

Download

Rim Size in	Size	PR	Type	RIm	Unloaded dimension		SLR	RC	Load capacity
					SW	OD	SLR	RC	Infl. Press.	STATIC	Max Speed	Max Load
					mm	mm	mm	mm	bar	kg	kmph	kg
					in	in	in	in	psi	lbs	mph	lbs
15	11L-15SL	12	TT/TL	8 LB	279 11	777 31	345 14	2331 92	3.6	2900	50	1450
15	11L-15SL	12	TT/TL	8 LB	279 11	777 31	345 14	2331 92	52	6390	31	3200

Download

Rim Size in	Size	PR	Type	RIm	Unloaded dimension		SLR	RC	Load capacity
					SW	OD	SLR	RC	Infl. Press.	STATIC	Max Speed	Max Load
					mm	mm	mm	mm	bar	kg	kmph	kg
					in	in	in	in	psi	lbs	mph	lbs
15	11L-15SL	10	TT/TL	8 LB	279 11	777 31	345 14	2331 92	3	2640	50	1320
15	11L-15SL	10	TT/TL	8 LB	279 11	777 31	345 14	2331 92	44	5820	31	2910

Download

Rim Size in	Size	PR	Type	RIm	Unloaded dimension		SLR	RC	Load capacity
					SW	OD	SLR	RC	Infl. Press.	STATIC	Max Speed	Max Load
					mm	mm	mm	mm	bar	kg	kmph	kg
					in	in	in	in	psi	lbs	mph	lbs
15	11L-15SL	8	TT/TL	8 LB	279 11	777 31	345 14	2331 92	2.5	2300	50	1150
15	11L-15SL	8	TT/TL	8 LB	279 11	777 31	345 14	2331 92	36	5070	31	2540

Download

Rim Size in	Size	PR	Type	RIm	Unloaded dimension		SLR	RC	Load capacity
					SW	OD	SLR	RC	Infl. Press.	STATIC	Max Speed	Max Load
					mm	mm	mm	mm	bar	kg	kmph	kg
					in	in	in	in	psi	lbs	mph	lbs
15	9.5L-15 SL	12	TT/TL	7	241 10	767 30	341 13	2247 89	4.4	2900	50	1450
15	9.5L-15 SL	12	TT/TL	7	241 10	767 30	341 13	2247 89	64	6395	31	3200

Download

Rim Size in	Size	PR	Type	RIm	Unloaded dimension		SLR	RC	Load capacity
					SW	OD	SLR	RC	Infl. Press.	STATIC	Max Speed	Max Load
					mm	mm	mm	mm	bar	kg	kmph	kg
					in	in	in	in	psi	lbs	mph	lbs
15	9.5L-15 SL	8	TT/TL	7	241 10	767 30	341 13	2247 89	3	2240	50	1120
15	9.5L-15 SL	8	TT/TL	7	241 10	767 30	341 13	2247 89	44	4940	31	2470

Download

Rim Size in	Size	PR	Type	RIm	Unloaded dimension		SLR	RC	Load capacity
					SW	OD	SLR	RC	Infl. Press.	STATIC	Max Speed	Max Load
					mm	mm	mm	mm	bar	kg	kmph	kg
					in	in	in	in	psi	lbs	mph	lbs
15	7.60-15 SL	10	TL	5.5	194 8	732 29	326 13	2145 84	4.3	2100	50	1050
15	7.60-15 SL	10	TL	5.5	194 8	732 29	326 13	2145 84	62	4630	31	2315

Download
