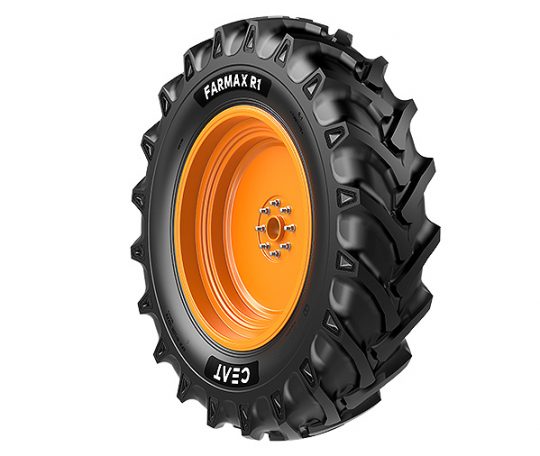

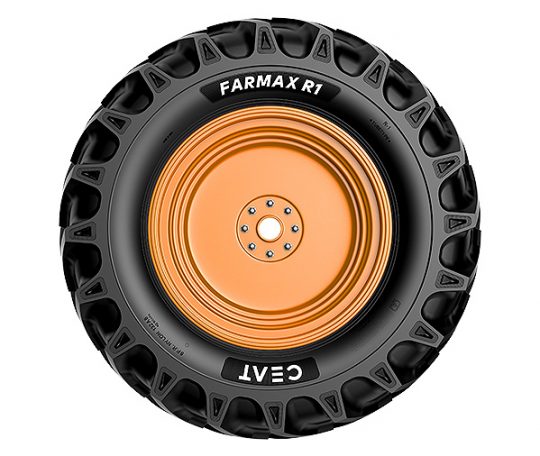

Farmax R1 – Tractor Tire

Expect better traction and roadability with FARMAX R1 bias tractor tires. The FARMAX R1 tractor tire is also designed to impart enhanced stability, making it quite the smooth operator!

Tough as well, these tractor tires have a reinforced carcass for a longer service life.

CEAT agricultural tractor tires are the gentle giants on your farm, and the FARMAX R1 bias agricultural tractor tire is just one of its heroes.

Features & Benefits: FARMAX R1- Bias Tractor Tire

Triple angle lugs help FARMAX R1 farm tractor tires achieve superior traction and roadability, while high center lug overlaps and a tie bar improve stability. A reinforced carcass ensures the FARMAX R1 tractor tire serves you longer.

Tractor

Scroll down for more details

Features & Benefits of Farmax R1 Tires

Datasheet

Understand Table Abbreviations

Reset Filter

Rim Size in	Size	LI/SS	PR	Type	Rim	Unloaded dimension		SLR	RC	Infl. Press.	Recommended Load kg(lbs)
						SW	OD	SLR	RC	Infl. Press.	Speed km/h (mph)
						mm	mm	mm	mm	bar	Static	30	40
						in	in	in	in	psi	Static	19	25
38	20.8-38	159A6/155A8	14	TL	W18	535	1840	830	5610	2.2	7750	4375	3875
38	20.8-38	159A6/155A8	14	TL	W18	99.1	340.7	153.7	1038.9	32	17080	9640	8540

Rim Size in	Size	LI/SS	PR	Rim (Std ; Alt)	Unloaded dimension		SLR	RC	Load capacity
					SW	OD	SLR	RC	Infl. Press.	Max Speed	Max Load
					mm	mm	mm	mm	bar	kmph	kg
					in	in	in	in	psi	mph	lbs
30	14.9-30	132 A8	8	W13x30 W12x30	380	1415	657	4260	1.8	40	2000
30	14.9-30	132 A8	8	W13x30 W12x30	14.9	55.7	25.8	167.7	26	25	4010

Rim Size in	Size	LI/SS	PR	Type	Rim	Unloaded dimension		SLR	RC	Load Carrying Capacity
						SW	OD	SLR	RC	Infl. Press.	Max. Speed	Max Load
						mm	mm	mm	mm	bar	kmph	kg
						in	in	in	in	psi	mph	lbs
22	9.5-22	106 A8	8	TT	W8x22	240	995	465	3010	2.7	40	950
22	9.5-22	106 A8	8	TT	W8x22	9.5	39.2	18.3	118.5	39	25	2095

Rim Size in	Size	LI/SS	PR	Type	Rim	Unloaded dimension		SLR	RC	Load Carrying Capacity
						SW	OD	SLR	RC	Infl. Press.
						mm	mm	mm	mm	bar
						in	in	in	in	psi
30	18.4-30	151 A8	14	TT	W16L	465 18.3	1555 61.2	723	4665	2.6
30	18.4-30	151 A8	14	TT	W16L	465 18.3	1555 61.2	28.5	183.6	38

Rim Size In	Size	PR	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Inf. Press.	Load Capacity
						SW	OD	SLR	RC	Inf. Press.	Load Capacity
						mm	mm	mm	mm	bar	Kg
						in	in	in	in	psi	lbs
28	13.6-28	14	14PR 155 A8	TT	W12	343	1310	613	3930	3.0	2120
28	13.6-28	14	14PR 155 A8	TT	W12	13.5	51.6	24.1	154.7	44	4674

Rim Size in	Size	LI/SS	PR	Type	Rim	Unloaded dimension		SLR	RC	Load Carrying Capacity
						SW	OD	SLR	RC	Infl. Press.	Max. Speed	Max Load
						mm	mm	mm	mm	bar	kmph	kg
						in	in	in	in	psi	mph	lbs
28	16.9-28	143 A8	12	TT	W15L	429 16.9	1435 56.5	672 26.5	4305 169.5	2.4	40	2725
28	16.9-28	143 A8	12	TT	W15L	429 16.9	1435 56.5	672 26.5	4305 169.5	35	25	6010

Rim Size in	Size	LI/SS	PR	Type	Rim	Unloaded dimension		SLR	RC	Load capacity
						SW	OD	SLR	RC	Infl. Press.	Max Speed	Max Load
						mm	mm	mm	mm	bar	kmph	kg
						in	in	in	in	psi	mph	lbs
36	12.4-36	126 A8	8	TT	W11	325 12.8	1465 57.6	694 27.3	4545 178.9	2.4	40	1700
36	12.4-36	126 A8	8	TT	W11	325 12.8	1465 57.6	694 27.3	4545 178.9	35	25	3748

Rim Size in	Size	LI/SS	PR	Type	Rim	Unloaded dimension		SLR	RC	Load capacity
						SW	OD	SLR	RC	Infl. Press.	Max Speed	Max Load
						mm	mm	mm	mm	bar	kmph	kg
						in	in	in	in	psi	mph	lbs
34	16.9-34	139 A6 /135 A8	8	TT	W15	435 17.1	1585 62.4	742 29.2	4755 187.2	1.7	40 / 30	2180 / 2430
34	16.9-34	139 A6 /135 A8	8	TT	W15	435 17.1	1585 62.4	742 29.2	4755 187.2	25	25 / 19	4806 / 5358

Rim Size in	Size	LI/SS	PR	Type	Rim	Unloaded dimension		SLR	RC	Load capacity
						SW	OD	SLR	RC	Infl. Press.	Max Speed	Max Load
						mm	mm	mm	mm	bar	kmph	kg
						in	in	in	in	psi	mph	lbs
30	16.9-30	137/A8	8	TT	W15	440 17.3	1490 58.7	697 27.5	4470 176.0	1.7	40	2300
30	16.9-30	137/A8	8	TT	W15	440 17.3	1490 58.7	697 27.5	4470 176.0	25	25	5076
