MPT 503
CEAT MPT 503 bias construction tires, with their strong built, are highly resistant to lateral damage, making CEAT MPT 503 a great choice for municipal loaders, concrete mixers and excavators.

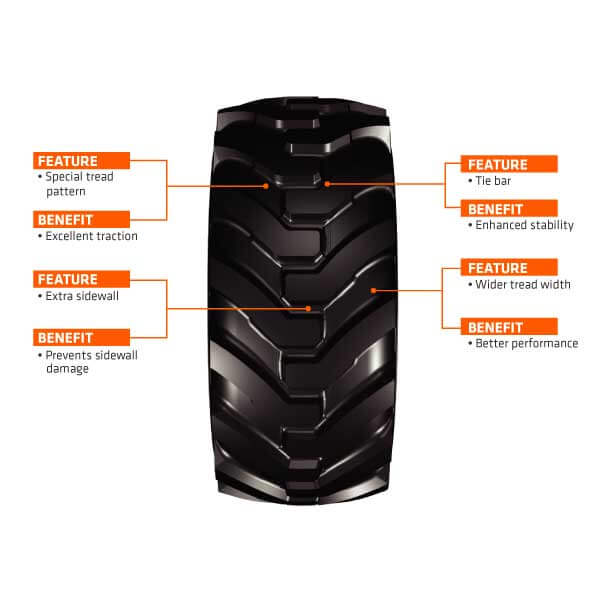

Features & Benefits:
The CEAT MPT 503 features extra sidewall which protects the sidewalls from damage. Tie bars provide additional support to lugs and ensure enhanced stability, and a specially designed tread pattern provides excellent traction. In addition to these, a wider tread width ensures better performance even under challenging circumstances.
Multi Use Tractor
|
Rim Size
in |
Size
|
LI/SS
|
Type
|
Rim
|
Unloaded dimension |
SLR
|
RC
|
Infl. Press.
|
Speed kmph/mph
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | |||||||||
| mm | mm | mm | mm | bar | 40 | |||||
| in | in | in | in | psi | 25 | |||||
|
19.5
|
18-19.5 (445/65-19.5) |
167A8
|
TL
|
19.5
|
465
18.3 |
1115
43.9 |
513
20.2 |
3345
131.7 |
7.2
105 |
5450
12015 |
|
Rim Size In
|
Size
|
PR
|
LI/SS
|
Type
|
Rim
|
Unloaded Dimension |
SLR
|
RC
|
Inf. Press.
|
Load Capacity
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | ||||||||||
| mm | mm | mm | mm | bar | Kg | ||||||
| in | in | in | in | psi | lbs | ||||||
|
22.5
|
18-22.5
|
16
|
163 A8
|
TL
|
14x22.5
|
457
18.0 |
1180
46.5 |
543
21.4 |
3495
137.6 |
4.5 | 4875 |
| 65 | 10745 | ||||||||||
|
Rim Size
in |
Size
|
LI/SS
|
Type
|
Rim
|
Unloaded dimension |
SLR
|
RC
|
Infl. Press.
|
Speed kmph/mph
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | |||||||||
| mm | mm | mm | mm | bar | 40 | |||||
| in | in | in | in | psi | 25 | |||||
|
19.5
|
18-19.5 (445/65-19.5)
|
160A8
|
TL
|
19.5
|
465
18.3 |
1115
43.9 |
513
20.2 |
3345
131.7 |
4.5 | 4500 |
| 65 | 9921 | |||||||||
