T422 VALUE PRO

The T422 VALUE PRO bias flotation tire goes about its business quite efficiently while protecting your crop yield, and ensuring productivity on the farm. The T422 VALUE PRO gives you just that, great value.

T422 VALUE PRO – bias flotation tire is recommended for use on trailers.

Features & Benefits:

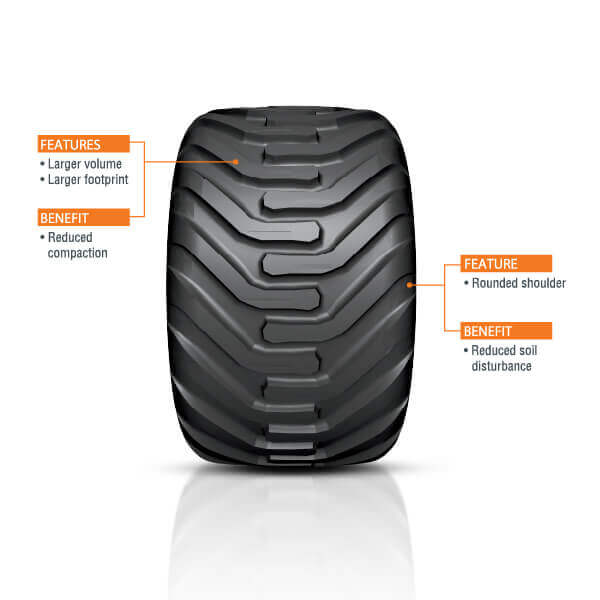

A larger volume and footprint increases the T422 VALUE PRO flotation tire’s ground contact while causing reduced compaction to the soil. Rounded shoulders enable just the right curvature to help reduce damage to plant life.

Trailer

Scroll down for more details

Datasheet

Understand Table Abbreviations

Reset Filter

Rim Size in	Size	LI/SS		PR	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Load Capacity
		Free Rolling	Drive Wheel				SW	OD	SLR	RC	Infl Pressure	Max Speed	Free Rolling	Drive Wheel
							mm	mm	mm	mm	Bar	kmph	kg	kg
							in	in	in	in	Psi	mph	lbs	lbs
15.5	400/60-15.5	152 A8	140 A8	20	TL	13	400	876	385	2575	5.0	40	3550	2500
15.5	400/60-15.5	152 A8	140 A8	20	TL	13	15.7	34.5	15.2	101.4	73	25	7825	5510

Download

Rim Size in	Size	LI/SS		PR	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Load Capacity
		Free Rolling	Drive Wheel				OD	SW	SLR	RC	Infl Pressure	Free Rolling 146 A8	Drive Wheel 134 A8
							mm	mm	mm	mm	Bar	kg	kg
							in	in	in	in	Psi	lbs	lbs
22.5	400/55-22.5	156 A8	144 A8	18	TL	13	1012	400	445	3135	4.5	4000	2800
22.5	400/55-22.5	153B	140B	18	TL	DC	40	16.1	18	123.4	65	8820	6170

Download

Rim Size in	Size	LI/SS		PR	TYPE	Rim	Unloaded dimension		SLR	RC	Infl pressure	Load capacity
		Free Rolling	Drive Wheel				SW	OD	SLR	RC	Infl pressure	Max Speed	Free Rolling	Drive Wheel
							mm	mm	mm	mm	Bar	kmph	kg	kg
							in	in	in	in	Psi	mph	lbs	lbs
22.5	500/45-22.5	148 A8/144 B	136 A8/132 B	12	TL	13.00DC	500 20.2	1045 41	470 19.5	3165 125.2	2.7 39	40 25	3150 6945	2240 4940

Download

Rim Size in	Size	LI/SS		PR	TYPE	Rim	Unloaded dimension		SLR	RC	Infl pressure	Load capacity
		Free Rolling	Drive Wheel				SW	OD	SLR	RC	Infl pressure	Max Speed	Free Rolling	Drive Wheel
							mm	mm	mm	mm	Bar	kmph	kg	kg
							in	in	in	in	Psi	mph	lbs	lbs
22.5	400/55-22.5	146 A8/143 B	134 A8/130 B	12	TL	13.00DC	400 16.1	1012 40	445 18	3135 123.4	3.0 43	40 25	3000 6615	2120 4675

Download

Rim Size in	Size	LI/SS		PR	TYPE	Rim	Unloaded dimension		SLR	RC	Infl pressure	Load capacity
		Free Rolling	Drive Wheel				SW	OD	SLR	RC	Infl pressure	Max Speed	Free Rolling	Drive Wheel
							mm	mm	mm	mm	Bar	kmph	kg	kg
							in	in	in	in	Psi	mph	lbs	lbs
15.5	400/60-15.5	148 A8	136 A8	16	TL	13	400	876	385	2575	4.4	40	3150	2240
15.5	400/60-15.5	148 A8	136 A8	16	TL	13	15.7	34.5	15.2	101.4	64	25	6945	4938

Download

Rim Size in	Size	LI/SS		PR	TYPE	Rim	Unloaded dimension		SLR	RC	Infl pressure	Load capacity
		Free Rolling	Drive Wheel				SW	OD	SLR	RC	Infl pressure	Max Speed	Free Rolling	Drive Wheel
							mm	mm	mm	mm	Bar	kmph	kg	kg
							in	in	in	in	Psi	mph	lbs	lbs
22.5	500/ 45-22.5	154 A8/150 B	142 A8/138 B	16	TL	16.00DC	500 20	1045 41	470 19	3165 125	3.6	50	3350	2360
22.5	500/ 45-22.5	154 A8/150 B	142 A8/138 B	16	TL	16.00DC	500 20	1045 41	470 19	3165 125	52	30	7385	5203

Download

Rim Size in	Size	LI/SS		PR	TYPE	Rim	Unloaded dimension		SLR	RC	Infl pressure	Load capacity
		Free Rolling	Drive Wheel				SW	OD	SLR	RC	Infl pressure	Max Speed	Free Rolling	Drive Wheel
							mm	mm	mm	mm	Bar	kmph	kg	kg
							in	in	in	in	Psi	mph	lbs	lbs
22.5	400/55-22.5	152 A8/149 B	140 A8/ 136 B	16	TL	13.00DC	400 16	1012 40	445 18	3135 123	4	50	3200	2250
22.5	400/55-22.5	152 A8/149 B	140 A8/ 136 B	16	TL	13.00DC	400 16	1012 40	445 18	3135 123	58	30	7055	4960

Download

Rim Size in	Size	LI/SS		PR	TYPE	Rim	Unloaded dimension		SLR	RC	Infl pressure	Load capacity
		Free Rolling	Drive Wheel				SW	OD	SLR	RC	Infl pressure	Max Speed	Free Rolling	Drive Wheel
							mm	mm	mm	mm	Bar	kmph	kg	kg
							in	in	in	in	Psi	mph	lbs	lbs
22.5	550/60-22.5	168 A8/ 163 B	155 A8/ 151 B	16	TL	16.00DC	550 22	1240 49	540 21	3720 146	3	40	5600	3875
22.5	550/60-22.5	168 A8/ 163 B	155 A8/ 151 B	16	TL	16.00DC	550 22	1240 49	540 21	3720 146	44	25	12345	8540

Download

Rim Size in	Size	LI/SS		PR	TYPE	Rim	Unloaded dimension		SLR	RC	Infl pressure	Load capacity
		Free Rolling	Drive Wheel				SW	OD	SLR	RC	Infl pressure	Max Speed	Free Rolling	Drive Wheel
							mm	mm	mm	mm	Bar	kmph	kg	kg
							in	in	in	in	Psi	mph	lbs	lbs
22.5	550/45-22.5	159 A8/ 156 B	147 A8/ 143 B	16	TL	16.00DC	550 22	1070 42	475 19	3200 126	2.8	40	4375	3075
22.5	550/45-22.5	159 A8/ 156 B	147 A8/ 143 B	16	TL	16.00DC	550 22	1070 42	475 19	3200 126	41	25	9645	6780

Download

Rim Size in	Size	LI/SS		PR	TYPE	Rim	Unloaded dimension		SLR	RC	Infl pressure	Load capacity
		Free Rolling	Drive Wheel				SW	OD	SLR	RC	Infl pressure	Max Speed	Free Rolling	Drive Wheel
							mm	mm	mm	mm	Bar	kmph	kg	kg
							in	in	in	in	Psi	mph	lbs	lbs
22.5	500/60-22.5	163 A8/ 159 B	151 A8/ 148 B	16	TL	16.00DC	500 20	1170 46	510 20	3490 137	3.2	40	4875	3450
22.5	500/60-22.5	163 A8/ 159 B	151 A8/ 148 B	16	TL	16.00DC	500 20	1170 46	510 20	3490 137	46	25	10750	7605

Download
