LIFT PRO

The LIFT PRO – radial telehandler tires – afford excellent traction and improved resistance coupled with high radial and lateral stability.

Features & benefits:

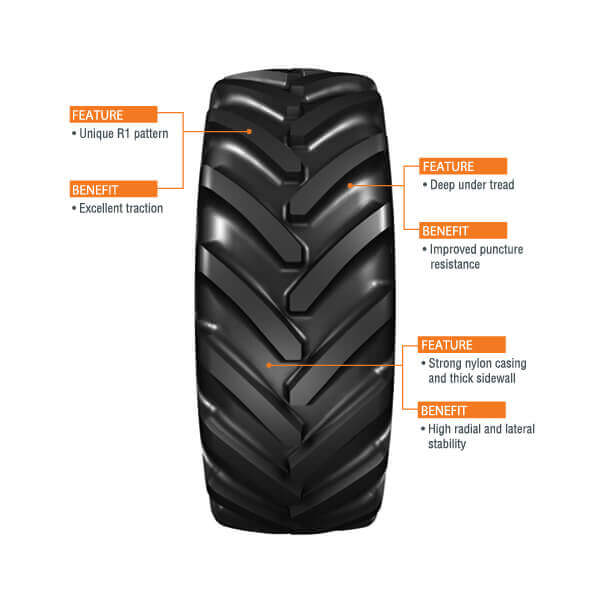

LIFT PRO – radial telehandler tires – have a unique R1 tread pattern for significantly improved traction. A deep under tread improves the tire’s puncture resistance.

Reinforced with a strong nylon casing and thick sidewall, the LIFT PRO offers higher radial and lateral stability.

Machinery: Backhoe, Utility Tractor, Telehandler

Telehandler

Telehandler

By clicking the Submit button you agree to our Terms & Conditions

Features & Benefits

Rim Size
in
Size
LI/SS
Type
RIm
Unloaded dimension
SLR
RC
Infl. Press
Recommended load kg(lbs)
Speed
Kmph
mph
Speed Kmph (mph)
SW
OD
Non cyclic operation Cyclic Operations
Static
10 20 30 40 50 10 15
6 12 19 25 31 6 9
mm mm mm mm bar
Constant Load
kg
lbs
Recommended Load
kg
lbs
in in in in psi
24
460/70R24
159A8/B
TL
W15L
W16L
455
17.9
1254
49.4
566
22.3
3713
146
2.4 7430 4040 3520 3360 3230 3230 4850 4330
35 16370 8900 7750 7400 7110 46835 10680 9540
2.8 8140 4430 3860 3680 3540 3540 5310 4740
41 17930 9760 8500 8110 7800 51330 11700 10440
3 8490 4610 4020 3840 3690 3690 5540 4940
44 18700 10150 8850 8460 8130 53505 12200 10880
3.6 9450 5140 4480 4270 4110 4110 6170 5510
52 20810 11320 9870 9410 9050 59595 13590 12140
4 10060 5470 4770 4550 4375 4375 6560 5860
58 22160 12050 10510 10020 9640 63437.5 14450 12910
