Spraymax Tires

Spraymax VF is specially designed for self-propelled sprayers.

It is engineered to carry 40% more load than a standard radial. Alternately, it carries the same load as a standard radial at 40% lesser pressure.

Features and Benefits

Stepped lug design provides better grip and traction. The center tie bar gives this tire superior roadability. Its rounded shoulders mean less soil and crop damage. The higher NSD ensures longer life, giving you a tire that’s durable and built to last.

Sprayer

Scroll down for more details

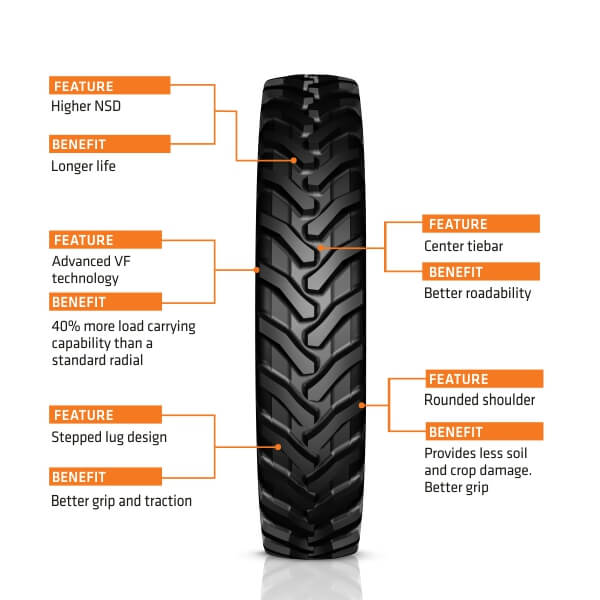

Features & Benefits of Spraymax Tires

Datasheet

Understand Table Abbreviations

Reset Filter

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
					SW	OD				Mixed Application			Cyclic
					mm	mm	mm	mm	bar	Static	Up to 65	70	bar	10
					in	in	in	in	psi	Static	Up to 40	43	psi	6
50	VF 480/80R50 SB*	179D	TL	DW16 DW15	479 18.9	2060 81.1	951 37.5	6148 242.1	0.8	7380	3210	2890	1	4490
									12	16260	7070	6370	13.9	9890
									1.2	9360	4070	3660	1.4	5700
									17	20620	8960	8060	20.9	12560
									2	12630	5490	4940	2.4	7690
									29	27820	12090	10880	34.8	16940
									2.8	15390	6690	6020	3.4	9370
									41	33900	14740	13260	48.7	20640
									3.6	17830	7750	6980	4.3	10850
									52	39270	17070	15370	62.6	23900
*Steel belted

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
					SW	OD				Mixed Application				Cyclic
					mm	mm	mm	mm	bar	Static	10	15 to 65km/h	70	bar	10
					in	in	in	in	psi	Static	6	10 to 40mph	43	psi	6
50	VF 480/80R50	179D	TL	DW16 DW15	479 18.9	2060 81.1	951 37.5	6148 242.1	0.6	6230	2900	2710	2440	0.7	3790
									9	13720	6390	5970	5370	10.4	8350
									0.8	7380	3440	3210	2920	1.6	4490
									12	16260	7580	7070	6430	23.2	9890
									1.2	9360	4360	4070	3700	2	5700
									17	20620	9600	8960	8150	29	12560
									2	12630	5880	5490	5000	2.8	7690
									29	27820	12950	12090	11010	40.6	16940
									2.8	15390	7170	6690	6090	3.6	9370
									41	33900	15790	14740	13410	52.2	20640
									3.6	17830	8300	7750	7050	4.4	10850
									52	39270	18280	17070	15530	63.8	23900

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
										Mixed Application			Cyclic
					mm	mm	mm	mm	bar	10	Up to 65	70	bar	10
					in	in	in	in	psi	6	Up to 40	43	psi	6
46	VF 480/80R46 SB*	164D	TL	DW16 DW15	479 18.9	1950 76.8	897 35.3	5838 229.8	0.8	7660	3330	3000	1	4660
									12	16870	7330	6610	13.9	10260
									1	8720	3790	3410	1.2	5310
									15	19210	8350	7510	17.4	11700
									1.2	9710	4220	3800	1.4	5910
									17	21390	9300	8370	20.9	13020
									1.4	10630	4620	4160	1.7	6470
									20	23410	10180	9160	24.4	14250
									1.6	11500	5000	4500	1.9	7000
									23	25330	11010	9910	27.8	15420
*Steel belted

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
					SW	OD				Mixed Application				Cyclic
					mm	mm	mm	mm	bar	Static	10	15 to 65km/h	70	bar	10
					in	in	in	in	psi	Static	6	10 to 40mph	43	psi	6
46	VF 480/80R46	164D	TL	DW16 DW15	479 18.9	1950 76.8	897 35.3	5838 229.8	0.8	7660	3570	3330	3030	1.6	4660
									12	16870	7860	7330	6670	23.2	10260
									1	8720	4060	3790	3450	1.8	5310
									15	19210	8940	8350	7600	26.1	11700
									1.2	9710	4520	4220	3840	2	5910
									17	21390	9960	9300	8460	29	13020
									1.4	10630	4950	4620	4200	2.2	6470
									20	23410	10900	10180	9250	31.9	14250
									1.6	11500	5360	5000	4550	2.4	7000
									23	25330	11810	11010	10020	34.8	15420

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
					SW	OD				Mixed Application				Cyclic
					mm	mm	mm	mm	bar	Static	10	15 to 65km/h	70	bar	10
					in	in	in	in	psi	Static	6	10 to 40mph	43	psi	6
42	VF 480/80R42	162D	TL	DW16 DW15	479 18.9	1850 72.8	847 33.4	5550 218.5	0.8	6670	3110	2900	2640	1.6	4060
									11	14690	6850	6390	5810	22.9	8940
									1.2	8580	4000	3730	3390	2	5220
									17	18900	8810	8220	7470	29	11500
									1.8	10930	5090	4750	4320	2.6	6650
									26	24070	11210	10460	9520	37.9	14650
									2	11570	5390	5030	4580	2.8	7040
									29	25480	11870	11080	10090	40.6	15510
									2.8	14100	6570	6130	5580	3.6	8580
									41	31060	14470	13500	12290	52.2	18900

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
					SW	OD				Mixed Application				Cyclic
					mm	mm	mm	mm	bar	Static	10	15 to 65km/h	70	bar	10
					in	in	in	in	psi	Static	6	10 to 40mph	43	psi	6
42	VF 480/80R42	176D	TL	DW16 DW15	479 18.9	1850 72.8	847 33.4	5550 218.5	0.8	6670	3110	2900	2640	1.6	4060
									11	14690	6850	6390	5810	22.9	8940
									1.2	8580	4000	3730	3390	2	5220
									17	18900	8810	8220	7470	29	11500
									1.8	10930	5090	4750	4320	2.6	6650
									26	24070	11210	10460	9520	37.9	14650
									2	11570	5390	5030	4580	2.8	7040
									29	25480	11870	11080	10090	40.6	15510
									2.8	14100	6570	6130	5580	3.6	8580
									41	31060	14470	13500	12290	52.2	18900
									3.6	16330	7610	7100	6460	4.4	9940
									52	35970	16760	15640	14230	63.8	21890

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
										Mixed Application			Cyclic
					mm	mm	mm	mm	bar	10	Up to 65	70	bar	10
					in	in	in	in	psi	6	Up to 40	43	psi	6
46	VF480/80 R46 177D SB*	177D	TL	DW16 DW15	479 18.9	1950 76.8	897 35.3	5838 229.8	0.8	7660	3330	3000	1	4660
									12	16870	7330	6610	13.9	10260
									1	8720	3790	3410	1.2	5310
									15	19210	8350	7510	17.4	11700
									1.2	9710	4220	3800	1.4	5910
									17	21390	9300	8370	20.9	13020
									1.4	10630	4620	4160	1.7	6470
									20	23410	10180	9160	24.4	14250
									1.6	11500	5000	4500	1.9	7000
									23	25330	11010	9910	27.8	15420
									2.4	13250	5760	5180	2.9	8060
									35	29190	12690	11410	41.8	17750
									3	15090	6560	5900	3.6	9180
									44	33240	14450	13000	52.2	20220
									3.6	16790	7300	6570	4.3	10220
									52	36980	16080	14470	62.6	22510
*Steel belted

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
					SW	OD				Mixed Application				Cyclic
					mm	mm	mm	mm	bar	Static	10	15 to 65km/h	70	bar	10
					in	in	in	in	psi	Static	6	10 to 40mph	43	psi	6
46	VF 480/80R46	177D	TL	DW16 DW15	479 18.9	1950 76.8	897 35.3	5838 229.8	0.8	7660	3570	3330	3030	1.6	4660
									12	16870	7860	7330	6670	23.2	10260
									1	8720	4060	3790	3450	1.8	5310
									15	19210	8940	8350	7600	26.1	11700
									1.2	9710	4520	4220	3840	2	5910
									17	21390	9960	9300	8460	29	13020
									1.4	10630	4950	4620	4200	2.2	6470
									20	23410	10900	10180	9250	31.9	14250
									1.6	11500	5360	5000	4550	2.4	7000
									23	25330	11810	11010	10020	34.8	15420
									2.4	13250	6170	5760	5240	3.2	8060
									35	29190	13590	12690	11540	46.4	17750
									3	15090	7030	6560	5970	3.8	9180
									44	33240	15480	14450	13150	55.1	20220
									3.6	16790	7820	7300	6640	4.4	10220
									52	36980	17220	16080	14630	63.8	22510

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
										Mixed Application			Cyclic
					mm	mm	mm	mm	bar	Static	Up to 65	70	bar	10
					in	in	in	in	psi	Static	Up to 40	43	psi	6
46	VF 380/90R46 SB*	173D	TL	DW12 DW13	383 15.1	1852 72.9	858 33.8	5586 219.9	0.8	5410	2350	2120	0.9	3290
									11	11920	5180	4670	13.6	7250
									1.4	7660	3330	3000	1.7	4660
									21	16870	7330	6610	24.6	10260
									2.8	11520	5010	4510	3.4	7010
									41	25370	11040	9930	49.5	15440
									3.6	13200	5740	5170	4.3	8040
									52	29070	12640	11390	62.5	17710
									4	14080	6120	5510	4.8	8570
									58	31010	13480	12140	69.6	18880
									4.4	14950	6500	5850	5.3	9100
									64	32930	14320	12890	77.1	20040
*Steel belted

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
										Mixed Application			Cyclic
					mm	mm	mm	mm	bar	Static	Up to 65	70	bar	10
					in	in	in	in	psi	Static	Up to 40	43	psi	6
54	VF 380/90R54 SB*	176D	TL	DW12 DW13	383 15.1	2056 80.9	960 37.8	6201 244.1	0.8	5910	2570	2310	0.9	3600
									11	13020	5660	5090	13.6	7930
									1.4	8370	3640	3280	1.7	5100
									21	18440	8020	7220	24.6	11230
									2.8	12600	5480	4930	3.4	7670
									41	27750	12070	10860	49.5	16890
									3.6	14440	6280	5650	4.3	8790
									52	31810	13830	12440	62.5	19360
									4	15390	6690	6020	4.8	9370
									58	33900	14740	13260	69.6	20640
									4.4	16330	7100	6390	5.3	9940
									64	35970	15640	14070	77.1	21890
*Steel belted

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
										Mixed Application			Cyclic
					mm	mm	mm	mm	bar	Static	Up to 65	70	bar	10
					in	in	in	in	psi	Static	Up to 40	43	psi	6
50	VF 380/90R50 SB*	175D	TL	DW12 DW13	383 15.1	1954 76.9	909 35.8	5850 230.3	0.8	5750	2500	2120	0.9	3290
									11	12670	5510	4670	12.5	7250
									1.4	8140	3540	3000	1.5	4660
									21	17930	7800	6610	21.7	10260
									2.8	12240	5320	4510	2.9	7010
									41	26960	11720	9930	42.4	15440
									3.6	14030	6100	5170	3.7	8040
									52	30900	13440	11390	53.2	17710
									4	14950	6500	5510	4.1	8570
									58	32930	14320	12140	59.2	18880
									4.4	15870	6900	5850	4.5	9100
									64	34960	15200	12890	65.4	20040
*Steel belted

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
					SW	OD				Mixed Application				Cyclic
					mm	mm	mm	mm	bar	Static	10	15 to 65km/h	70	bar	10
					in	in	in	in	psi	Static	6	10 to 40mph	43	psi	6
54	VF 380/90R54	176D	TL	DW12 DW13	383 15.1	2056 80.9	960 37.8	6201 244.1	0.8	5910	2750	2570	2340	1.6	3600
									11	13020	6060	5660	5150	22.9	7930
									1.4	8370	3900	3640	3310	2.2	5100
									21	18440	8590	8020	7290	32.1	11230
									2.8	12600	5870	5480	4990	3.6	7670
									41	27750	12930	12070	10990	52.8	16890
									3.6	14440	6730	6280	5710	4.4	8790
									52	31810	14820	13830	12580	63.7	19360
									4	15390	7170	6690	6090	4.8	9370
									58	33900	15790	14740	13410	69.6	20640
									4.4	16330	7610	7100	6460	5.2	9940
									64	35970	16760	15640	14230	75.8	21890

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
					SW	OD				Mixed Application				Cyclic
					mm	mm	mm	mm	bar	Static	10	15 to 65km/h	70	bar	10
					in	in	in	in	psi	Static	6	10 to 40mph	43	psi	6
50	VF 380/90R50	175D	TL	DW12 DW13	383 15.1	1954 76.9	909 35.8	5850 230.3	0.8	5840	2720	2540	2310	1.6	3560
									12	12860	5990	5590	5090	23.2	7840
									1.4	8140	3790	3540	3220	2.2	4960
									21	17930	8350	7800	7090	32.1	10930
									2.8	12240	5700	5320	4840	3.6	7450
									41	26960	12560	11720	10660	52.8	16410
									3.6	14030	6540	6100	5550	4.4	8540
									52	30900	14410	13440	12220	63.7	18810
									4	14950	6960	6500	5920	4.8	9100
									58	32930	15330	14320	13040	69.6	20040
									4.4	15870	7390	6900	6280	5.2	9660
									64	34960	16280	15200	13830	75.8	21280

Download

Rim Size In	Size	LI/SS	Type	Rim	Unloaded Dimension		SLR	RC	Infl Pressure	Maximum Load
					SW	OD				Speed km/h (mph)
					SW	OD				Mixed Application				Cyclic
					mm	mm	mm	mm	bar	Static	10	15 to 65km/h	70	bar	10
					in	in	in	in	psi	Static	6	10 to 40mph	43	psi	6
46	VF 380/90R46	173D	TL	DW12 DW13	383 15.1	1852 72.9	858 33.8	5586 219.9	0.8	5410	2520	2350	2140	1.6	3290
									11	11920	5550	5180	4710	22.9	7250
									1.4	7660	3570	3330	3030	2.2	4660
									21	16870	7860	7330	6670	32.1	10260
									2.8	11520	5370	5010	4560	3.6	7010
									41	25370	11830	11040	10040	52.8	15440
									3.6	13200	6150	5740	5220	4.4	8040
									52	29070	13550	12640	11500	63.7	17710
									4	14080	6560	6120	5570	4.8	8570
									58	31010	14450	13480	12270	69.6	18880
									4.4	14950	6960	6500	5920	5.2	9100
									64	32930	15330	14320	13040	75.8	20040

Download
