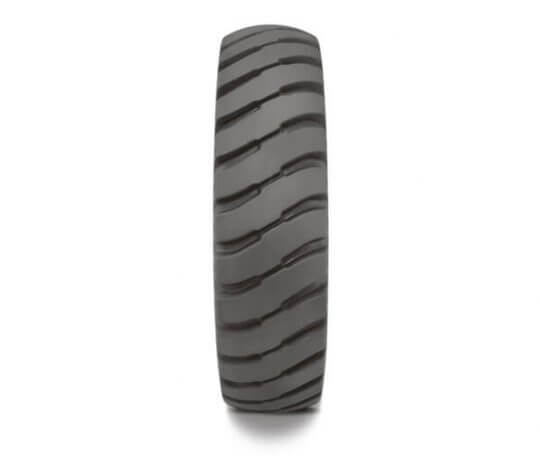

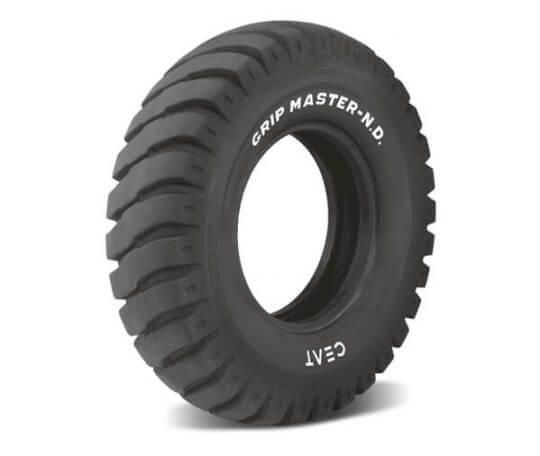

Grip Master ND
Built to shoulder heavy loads and extreme working conditions, the GRIP MASTER ND tire is heat, cut and weather resistant. It also withstands cuts, snags and bruises. With reduced heat-build up, a longer service life and higher stability, this construction tire can be used on intermittent highway services.
Features & Benefits:

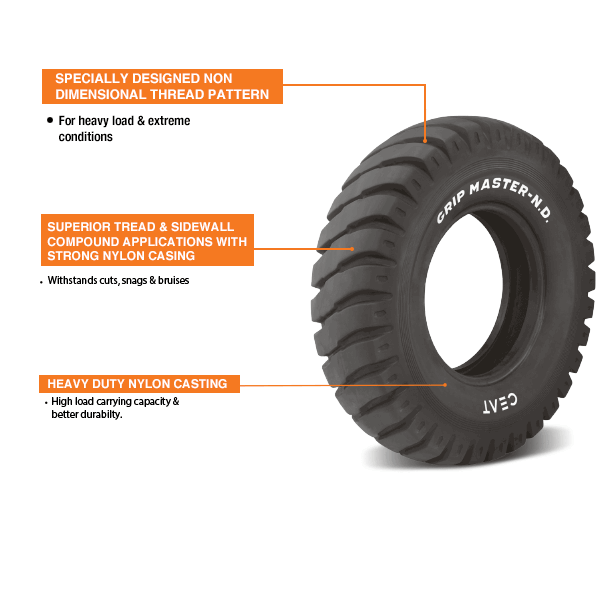

A specially designed non-directional tread pattern ensures the GRIP MASTER ND can shoulder heavy loads and extreme working conditions.
A premium tire for heavy-duty and severe loading and earthmover operations, the GRIP MASTER ND is heat, cut and weather resistant.
A heavy-duty nylon casing strengthens the tire to withstand cuts, snags and bruises, while a superior tread and sidewall compound help reduce heat build-up.
With improved service life and higher stability, the Grip Master ND is a construction tire that can be used on intermittent highway services.
Backhoe Loader
Loader
|
Rim Size
in |
Size
|
Type
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Load Capacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Transport 50 kmph (30mph) |
Loading 10 kmph (5mph) |
|||||||||||
| SW | OD | Infl. Press | Max.Load | Infl. Press | Max.Load | |||||||
| mm | mm | mm | mm | bar | kg | bar | kg | |||||
| in | in | in | in | psi | lbs | psi | lbs | |||||
|
25
|
14.00-25
|
TT
TL |
24
|
10.00
|
385
15 |
1368
54 |
630
25 |
4050
159 |
5.75 | 5150 | 8.5 | 9500 |
| 83 | 11400 | 123 | 20945 | |||||||||
|
Rim Size
in |
Size
|
Type
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Load Capacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Transport 50 kmph (30mph) |
Loading 10 kmph (5mph) |
|||||||||||
| SW | OD | Infl. Press | Max.Load | Infl. Press | Max.Load | |||||||
| mm | mm | mm | mm | bar | kg | bar | kg | |||||
| in | in | in | in | psi | lbs | psi | lbs | |||||
|
25
|
14.00-25
|
TT
TL |
20
|
10.00
|
385
15 |
1368
54 |
630
25 |
4050
159 |
4.75 | 4625 | 7 | 8500 |
| 69 | 10200 | 102 | 18740 | |||||||||
