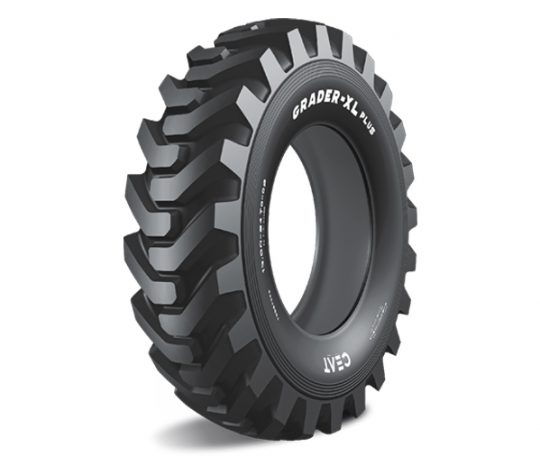

Grader XL Plus
With a high load carrying capacity, the GRADER XL PLUS is constructed for heavy-duty services in mining, road and construction applications. Heat, cut and weather resistant, this tyre also has the ability to withstand cuts, snags and bruises.

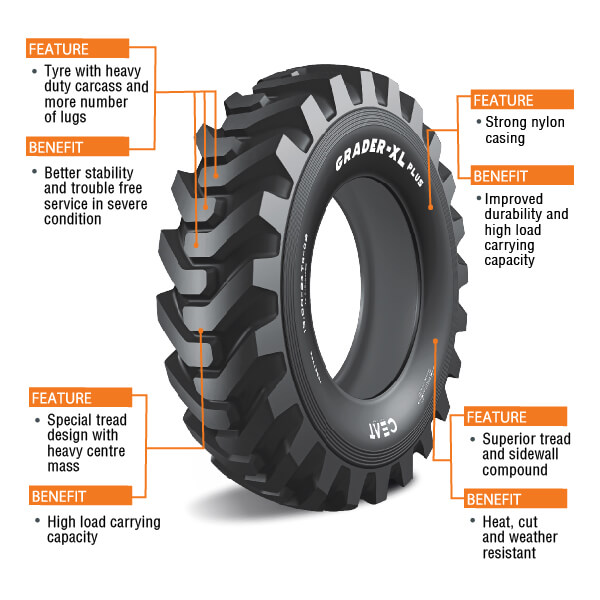

Features & Benefits:

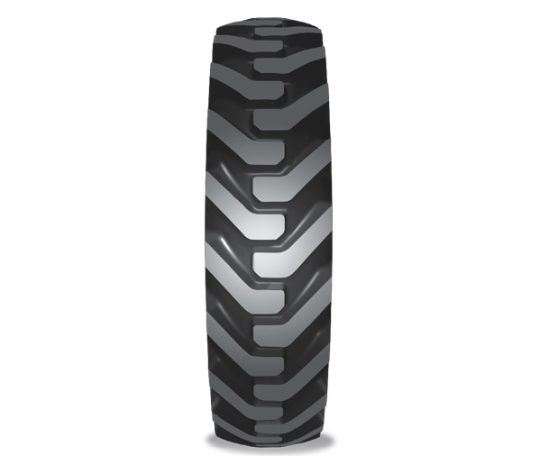

The GRADER XL PLUS features a special tread design with heavy centre mass for heavy-duty applications in mining, road and construction applications.
A premium tyre with a heavy-duty carcass and more lugs, it delivers higher stability and trouble-free service in severe conditions.
Designed for drive wheel applications, the GRADER XL PLUS is robust and sturdy enough to support drive wheel applications and offers heat, cut and weather resistance.
A superior tread and sidewall compound helps it withstand cuts, snags and bruises, while a strong nylon casing delivers high load carrying capacity.
The GRADER XL PLUS is recommended for use on motor graders.
Grader
| Rim Size in |
Size | Type | PR | Rim | Unloaded Dimension | SLR | RC | Load Capacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | Grader Service | Loader Service | |||||||||
| 40kmph/ 25kmph | 10kmph/5mph | |||||||||||
| Infl. Press | Max. Load | Infl. Press | Max. Load | |||||||||
| mm | mm | mm | mm | bar | kg | bar | kg | |||||
| in | in | in | in | psi | lbs | psi | lbs | |||||
|
24
|
13.00-24
|
TT TL
|
16
|
8
|
351
14 |
1301
85 |
610
24 |
4008
158 |
3.8 | 3250 | 6 | 6500 |
| 54 | 7165 | 87 | 14300 | |||||||||
| Rim Size in |
Size | Type | PR | Rim | Unloaded Dimension | SLR | RC | Load Capacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | Grader Service | Loader Service | |||||||||
| 40kmph/ 25kmph | 10kmph/5mph | |||||||||||
| Infl. Press | Max. Load | Infl. Press | Max. Load | |||||||||
| mm | mm | mm | mm | bar | kg | bar | kg | |||||
| in | in | in | in | psi | lbs | psi | lbs | |||||
|
24
|
13.00-24
|
TT TL
|
12
|
8
|
351
14 |
1301
85 |
610
24 |
4008
158 |
3 | 2725 | 4.5 | 5600 |
| 44 | 6000 | 65 | 12350 | |||||||||
